Energy storage system

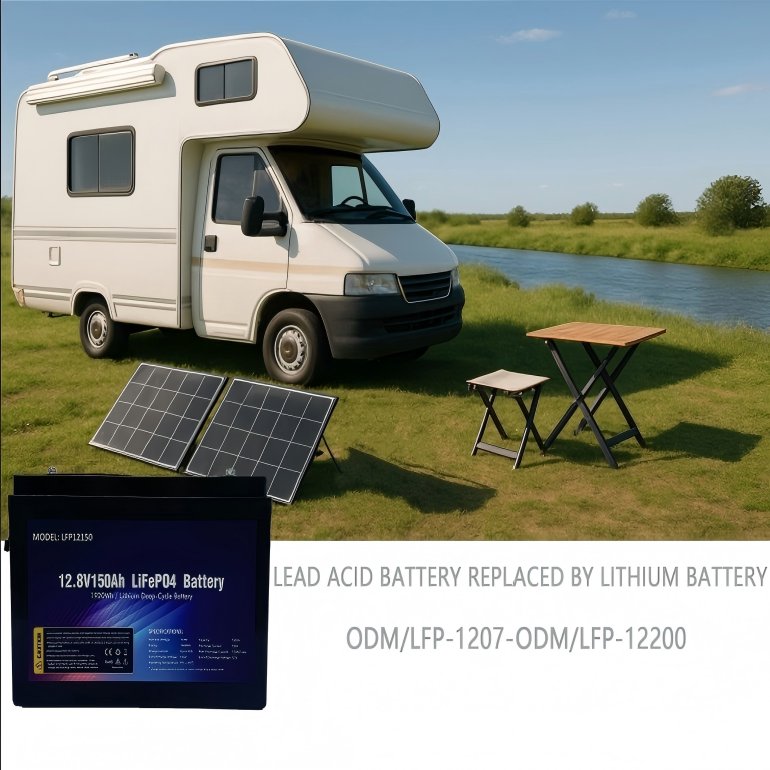

Lead acid battery replaced by lithium battery (LFP-12200)
● High security multiple protection circuits
● No lead pollution,low maintenance cost
● Flexible scalability battery for home and industrial
● Anti-vibration and shock-resistant design
● High energy density extends device life
● Wide temperature range to combat extreme weather
● Widely used in various scenarios,easy to carry
| Model | ODM/LFP-1207 | ODM/LFP-1212 | ODM/LFP-1220 | ODM/LFP-1240 |
| Product Specification | 12V 7Ah | 12V 12Ah | 12V 20Ah | 12V 40Ah |
| Nominal Voltage | 12.8V | 12.8V | 12.8V | 12.8V |
| Nominal Capacily | 7Ah | 12Ah | 20Ah | 40Ah |
| Battery Energy | 89.6Wh | 153.6Wh | 256Wh | 512Wh |
| Max Charge Current | 4A | 5A | 10A | 20A |
| Charging Cut-off Voltage | 14.6V±0.2V | 14.6V±0.2V | 14.6V±0.2V | 14.6V±0.2V |
| Max Discharge Curent | 7A | 10A | 20A | 40A |
| Discharging Cut-off Voltage | 9.2V±0.2V | 9.2V±0.2V | 9.2V±0.2V | 9.2V±0.2V |
| Cell Type | LFaPO4 Battery | LFaPO4 Battery | LFaPO4 Battery | |
| Display | / | / | / | |
| Terminal | Faston 250(F2) | M5 | M6 | |
| Case Material | ABS+PC | |||
| Waterproof Level | IP55 | |||
| Charge Temperature Range | 0-45'℃ | |||
| Discharge Temperature Range | -5-55'℃ | |||
| Cycle Life | ≥6500 Cycles | |||
| Designed Life | 12 Years | |||
| Color | Black | |||
| Weight | 0.76Kg | 1.4Kg | 2.2Kg | 5.8Kg |
| Dimensions(LxWxH) | 151*65*95mm | 151*99*95mm | 181*76*170mm | 195*132*170mm |
| Assembly Method | Built in | |||
| Model | ODM/LFP-1275 | ODM/LFP-12100 | ODM/LFP-12120 | ODM/LFP-12200 |
| Product Specification | 12V 75Ah | 12V 100Ah | 12V 120Ah | 12V 200Ah |
| Nominal Voltage | 12.8V | 12.8V | 12.8V | 12.8V |
| Nominal Capacily | 75Ah | 100Ah | 120Ah | 200Ah |
| Battery Energy | 960Wh | 1280Wh | 1536Wh | 2560Wh |
| Max Charge Current | 30A | 70A | 70A | 100A |
| Charging Cut-off Voltage | 14.6V±0.2V | 14.6V±0.2V | 14.6V±0.2V | 14.6V±0.2V |
| Max Discharge Curent | 80A | 100A | 100A | 200A |
| Discharging Cut-off Voltage | 9.2V±0.2V | 9.2V±0.2V | 9.2V±0.2V | 9.2V±0.2V |
| CellType | LFaPO4 Battery | |||
| Display | LCD(Optional) | |||
| Terminal | M8 | |||
| Case Material | ABS+PC | |||
| Waterproof Level | IP55 | |||
| Charge Temperature Range | 0-45'C | |||
| Discharge Temperature Range | -5-55'C | |||
| Cycle Life | ≥6500 Cycles | |||
| Designed Life | 12 Years | |||
| Color | Black | |||
| Weight | 9.8Kg | 11.2Kg | ≤16Kg | 20Kg |
| Dimensions(LxWxH) | 260*168*211mm | 329*172*214mm | 352*174*189mm | 522*239*218mm |
| Assembly Method | Built in | |||
