Energy storage system

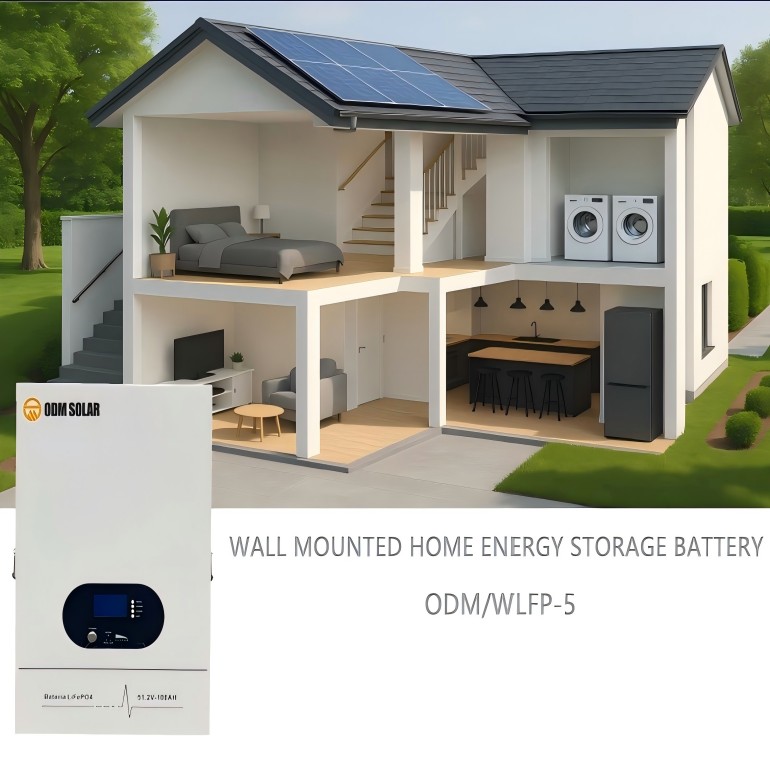

Wall mounted home energy storage battery (WLFP-5)
● A-grade LiFePO4 cells from top 5 brands
● Intelligent BMS automatic restoration
● 8 years warranty 15 years lifespan
● Cyce life:≥6000 times 80%DoD
● Support customization
● Support for parallel connecfion
● Support inverter communicafions
| Model | ODM/WLFP-5 |
| Product Specification | 51.2V 100Ah |
| Nominal Voltage | 51.2V |
| Nominal Capacily | 100Ah |
| Battery Energy | 5.12Kwh |
| Charging Cut-off Voltage | 54V±0.2V |
| Discharging Cut-off Voltage | 42V±0.2V |
| Charge Current | Recommend /30A:Max/50A |
| Discharge Current | Recommend/50A:Max/100A:Peak/105A(5 sec.) |
| Recommended Load | 3～5KW |
| Cell Type | LiFePO4(Solid · state)Battery |
| Terminal | M8 |
| Case Material | Metal Box |
| Communication Mode | RS485/CAN |
| Charge Temperature Range | 0-45'C |
| Discharge Temperature Range | -5-55'C |
| Cycle Life | ≥6500 Cycles |
| Designed Life | 12 Years |
| Color | White |
| Weight | ≈49.5Kg |
| Dimensions(LxWxH) | 480*160*600mm |
| Assembly Method | Wall Mounted |
