Energy storage system

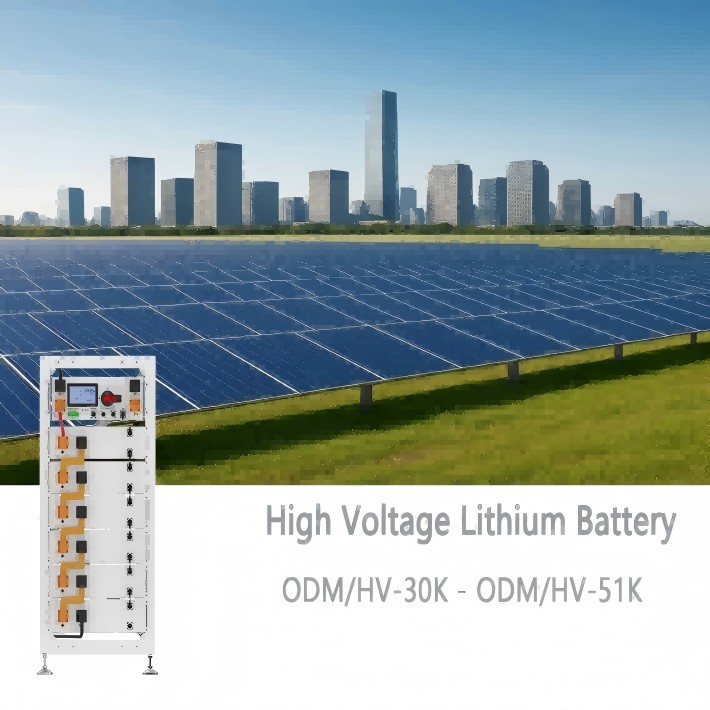

High Voltage Lithium Battery (HV-30K)
●Small size,saving chassis space
●Easy to install in any angles
●Good compatibility and adaptability
●Long cycle life with multiple application modes
●Using automotive-grade battery cells
●Multiple cabinets are connected in parallel
●Support MW-level power
| Model Product | ODM/HV-30K 307.2V100AH | ODM/HV-40K 409.6V100AH | ODM/HV-51K 512V100AH |
| Nominal Voltage | 307.2V | 409.6V | 512V |
| Nominal Capacity | 100AH | 100AH | 100AH |
| Dimension Moudle(mm) | 440*442*133*6 | 440*442*133*8 | 440*442*133*10 |
| Dimension RACK(mm) | 600*550*1004 | 600*550*1368 | 600*550*1672 |
| Weight(kg) | 320KG | 420KG | 520KG |
| Specifications | |||
| Nominal Capacity(KWH) | 30.72 | 40.96 | 51.2 |
| Discharge Cut-Off Voltage(V) | 264 | 352 | 440 |
| Charge Cut-Off Voltage(V) | 340.8 | 454.4 | 568 |
| Recommend Charge/Discharge Current(A) | 60 | 60 | 60 |
| Max.Charge/Discharge working Current(A) | 100 | 100 | 100 |
| Communication | RS485/RS232/CAN | ||
| Working Temperature | 0'C-50'℃ Charge -10'℃ ~50'℃ Disharge | ||
| Transport or Storage Temperature Range | -20°C-60°C | ||
| Certification | CE/IEC/ULUN38.3/MSDS | ||
| Design Life | 15years+ | ||
| Cycle Life | (0.5C10.5C-80%DOD)>6000 times | ||
| Series Function | Support 16 units in Series | ||
| Certification | UN38.3/MSDSIROHS | ||
