Energy storage system
Energy Storage System (ODM SLFP-5-15KWH)
Stackable & Wall Mounted Energy Storage System
Product Features
Stadkable & Wall ounted
Built-in BVS
Support for Parallel Connection
Supports lnverterCommunications
Energy dense
Long cycle life
Support customization
Applicable Scope
Household Energy Storage
UPS System
SolarStorage
Central Oifice
Base Transceiver Station
Bectric Power System
Telecommunication Systems
Communication Equipments
Switching Applications and More
Specification:
| Models | ODM/SLFP-4.8KWH-100Ah | ODM/SLFP-9.6KWH-100Ah | ODM/SLFP-14.4KWH-100Ah |
| Product Specification | 48V 100Ahx1P | 48V 100Ahx2P | 48V 100Ahx3P |
| Nominal Voltage | 48V | 48V | 48V |
| Nominal Capacity | 100Ah | 200Ah | 300Ah |
| Battery Energy | 4.8Kwh | 9.6Kwh | 14.4Kwh |
| Max Charge Current | 70A | 140A | 210A |
| Max Discharge Current | 100A | 200A | 300A |
| Maximum Load | <5Kw | <10Kw | <15Kw |
| Charging Cut-off Voltage | 54V±0.2V | ||
| Discharging Cut-of Voltage | 42V±0.2V | ||
| Cell Type | LiFePO4Baltery | ||
| Terminal | M8 | ||
| Case Material | Metal Box | ||
| Communication Mode | RS485/CAN | ||
| Charge Temperature Range | 0~45℃ | ||
| Discharge Temperature Range | 5-55℃ | ||
| Cycle Lie | 26000 Cycles | ||
| Designed Life | 12 Years | ||
| Colour | white+black | ||
| Weigh | 43+0.5Kg | 86+0.5Kg | 129+0.5Kg |
| Dimensions(LxWxH) | 483*200/220*460/490mm | 483*200/220*940mm | 483*200/220*1400mm |
| Assembly Method | Stackable &Wall Mounted | Stackable | |
| Models | ODM/WLFP-5KWH-100AH | ODM/WLFP-10KWH-200AH | ODM/WLFP-15KWH-300AH |
| Product Specification | 51.2V 100Ahx1P | 51.2V 100Ahx 2P | 51.2V 100Ahx3P |
| Nominal Voltage | 51.2V | 51.2V | 51.2V |
| Nominal Capacity | 100Ah | 200Ah | 300Ah |
| Battery Energy | 5.12Kwh | 10.24Kwh | 15.36Kwh |
| Max Charge Current | 70A | 140A | 210A |
| Max Discharge Current | 100A | 200A | 300A |
| Maximum Load | ≤5Kw | ≤10Kw | ≤15Kw |
| Charging Cut-off Voltage | 57.6V±0.2V | ||
| Discharging Cut-off Voltage | AAAV±0.N | ||
| Cell Type | 1FePO4 Battery | ||
| Terminal | M8 | ||
| Case Material | Metal Box | ||
| Communication Mode | RS485/CAN | ||
| Charge Temperature Range | 0~45℃ | ||
| Discharge Temperature Range | 5-55℃ | ||
| Cycle Life | 26000 Cycles | ||
| Designed Life | 12 Years | ||
| Colour | white+black | ||
| Weight | 45.5+0.5Kg | 88.5±0.5Kg | 31.5±0.5Kg |
| Dimensions(LxWxH) | 483*200/220*460/490mm | 483*200/220*940mm | 483*200/220*1400mm |
| Assembly Method | Stackable &Wall Mounted | Stackable | |

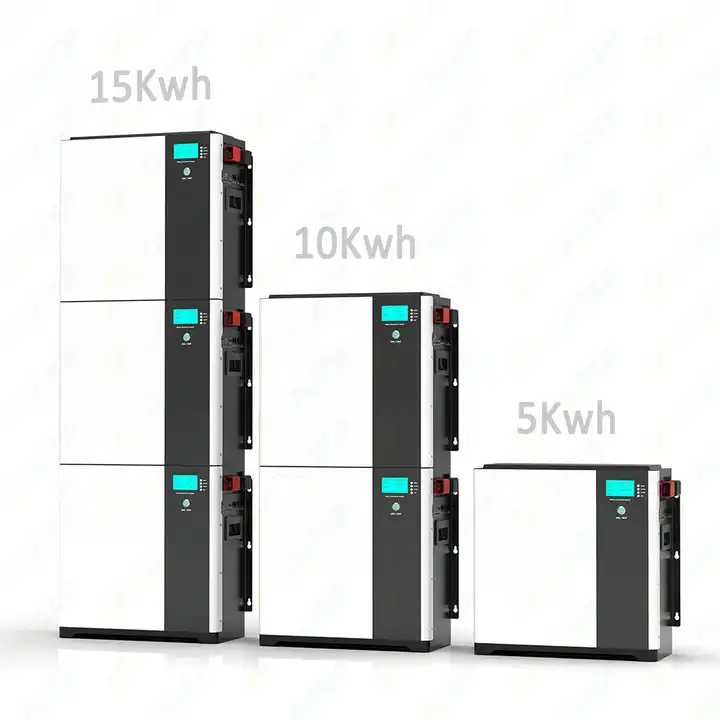

Picture:
