Hybrid solar inverter

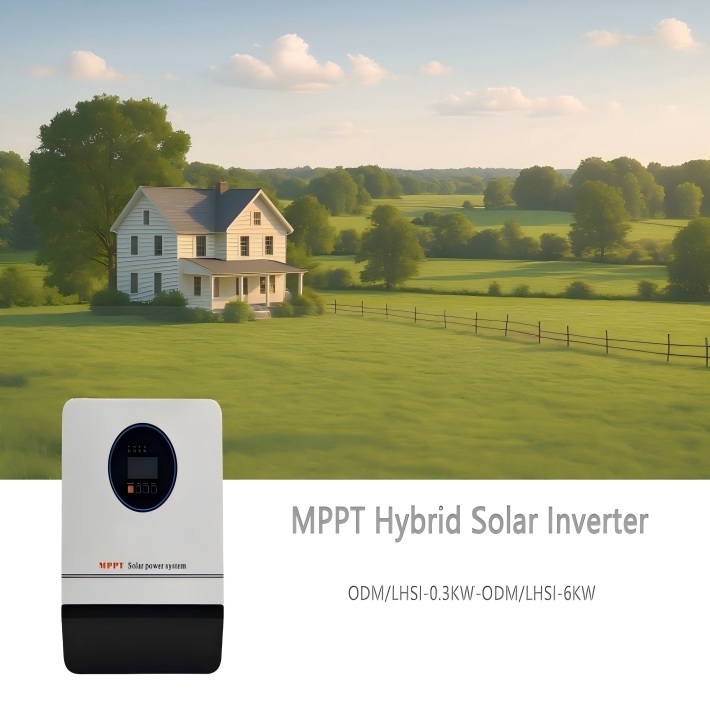

MPPT Hybrid solar inverter (LHSI 1.5-6KW)
●The power/energy saving/battery mode can be set up
●Smart fan control,safe and reliable
●The pure sine wave output,can adapt to various types of load
●Wide input range,automatic voltage regulation function
●The LCD real-time display device parameters
●Overload/short circuit protection,automatic protection and alarm
●Built-in GPRS/WIFI wireless network module
| Model Power Rating(w) | ODM/LHSI 0.3-1KW | ODM/LHSI 1.5-6KW | |||
| 300 | 700 | 1500 | 3000 | 5000 | |
| 500 | 1000 | 2000 | 4000 | 6000 | |
| Battery | |||||
| Rated Voltage(VDC) | 12/24 | 12/24/48 | 24/48 | 48 | |
| Charge Current | 10A MAX | 30A MAX | |||
| Battery Type | Can be set | ||||
| Input | |||||
| Voltage Range | 73-138VAC/145-275VAC | 85-138VAC/170-275VAC | |||
| Frequency | 45-65Hz | ||||
| Output | |||||
| Voltage Range | 110VAC/220VAC;±5%(Inverter mode) | ||||
| Frequency | 50/60Hz±1%(Inverter mode) | ||||
| Output Wave | Pure Sine Wave | ||||
| Change Time | <10ms(Typical load) | ||||
| Frequency | >85%(80%Resistive load) | ||||
| Overcharge | 110-120%/30S;>160%/300ms; | ||||
| Protection Function | Battery over-voltage and low-voltage protection,overload protection,short circuit protection,over-temperature protection | ||||
| Solar Controller | |||||
| MPPT Voltage Range | 12VDC:15V-150VDC;24VDC:30V-150VDC:48VDC:60V～150VDC | ||||
| PV Power | 12VDC-30A(400W); 24VDC-30A(800W) | 12VDC-60A(800W); 24VDC-60A/1600W); 48VDC-60A(3200W) | |||
| Rated Charge Current | 30A(Max) | 60A(Max) | |||
| MPPT Efficiency | ≥99% | ||||
| Average Charging Voltage(lead acid battery) | 12V/14.2VDC;24V/28.4VDC;48V/56.8VDC | ||||
| Floating Charge Voltage | 12V/13.75VDC;24V/27.5VDC;48V/55VDC | ||||
| Operating Ambient Temperature | -15-+50℃ | ||||
| Storage Ambient Temperature | -20-+50℃ | ||||
| Operating/storage Environment | 0-90%No Condensation | ||||
| Dimensions:W*D*H(mm) | 420*321*125 | 545*461*170 | |||
| Packing size:W*D*H(mm) | 515*380*205 | 645*555*260 | |||
