Hybrid solar inverter

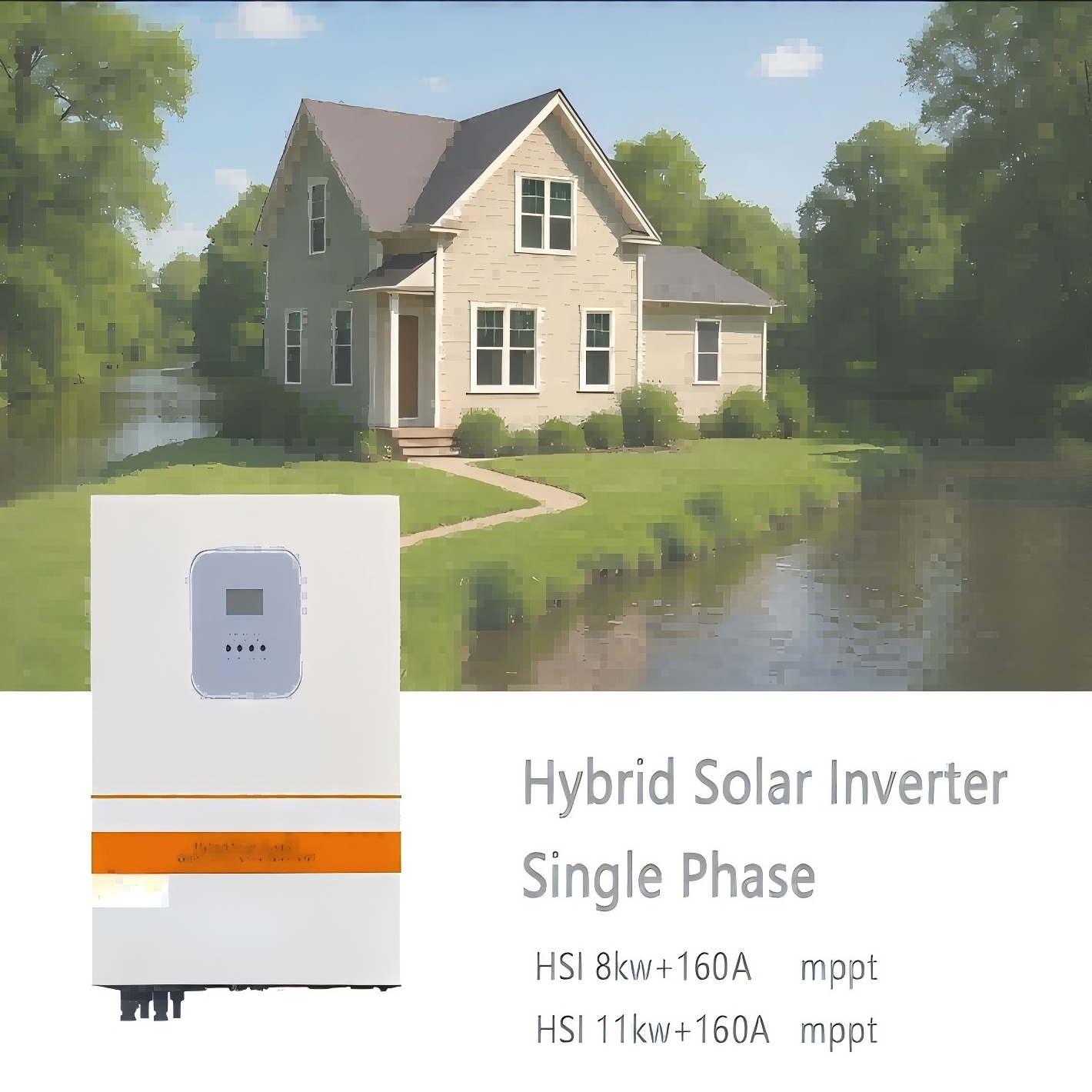

Hybrid solar inverter (ODM/MHSI-8KW)
●High frequency inverter,lighter weight with higher efficiency
●Output power factor PF=1
●lithium battery activation start function with ac and solar mode
●Parallel function to expansion power
●Higher solar charging efficiency and battery protection
●Pure sine wave output,adaptable to different loads
●Optional WIFI function
| Model | MHSI-8KW | MHSI-11KW |
| Input | ||
| Input Sources | L+N+PE | |
| Rated Input Voltage | 208/220/230/240VAC | |
| Voltage Range | 154-264VAC±3(APP Mode)185-264VAC±3V(UPS Mode) | |
| Frequency | 50HZ/60HZ(Auto Adaptive) | |
| Output | ||
| Rated Capacity | 8000W | 11000W |
| Output Voltage | 208/220/230/240VAC±5% | |
| Output Frequency | 50/60HZ±0.1% | |
| Waveform | Pure Sine Wave | |
| Transfer Time(Adjustable) | 10ms for computer,20ms for home appliances | |
| Peak Efficiency(Battery Mode) | >94% | >94% |
| Battery | ||
| Battery Voltage | 48Vdc | 48Vdc |
| Constant Charging Voltage(Optional) | 56.4Vdc | 56.4Vdc |
| Floating Charging Voltage(Optional) | 54Vdc | 54Vdc |
| Chargers | ||
| PV Charging Mode | Double MPPT | Double MPPT |
| MAX.PV Input Power | 5500W+5500W | 5500W+5500W |
| MPPT Tracking range | 120~450Vdc | 120~450Vdc |
| MAX.PV Input Voltage | 500Vdc | 500Vdc |
| MAX.PV Charging Current | 80A+80A | 80A+80A |
| MAX.AC Charging Current | 80A+80A | 80A+80A |
| MAX.Charging Current | 80A+80A | 80A+80A |
| Display | ||
| LCD Display | Operating mode/load/input/output,etc. | |
| Interface | ||
| RS232 | 5PIN/Pitch2.0mm,baud rate 2400 | |
| Communication Port | 2×5PIN/Pitch2.54mm,lithium battery BMS communication card,WIFI card,dry contact card,etc. | |
| Parallel Connect Interface | Optional | Optional |
