Hybrid solar inverter

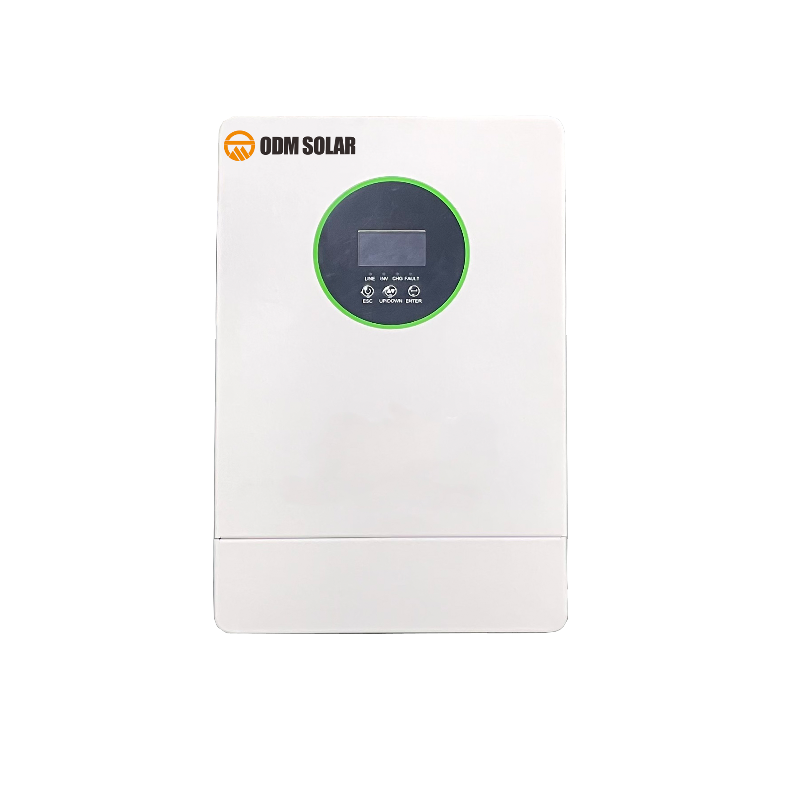

Hybrid solar inverter (ODM/MHSI-3.5KW)
●Mu Pure sine wave output,adaptable to different loads
●MPPT Efficiency>98%,Charging Efficiency>98%
●Configurable AC/Solar Charger priority
●Compatible to lead acid battery,GEL battery,lithium battery
●Support parallel operation up to 9 units
●Overload/Over temperature/short circuit protection
●LCD Display Running Mode/Loads/input/Output etc
●LCD Display Running Mode/Loads/input/Output etc
| Model | MHSI-3.5KW | MHSI-5.5KW | MHSI-P5.5KW |
| Input | |||
| Input Sources | L+N+PE | ||
| Rated Input Voltage | 208/220/230/240VAC | ||
| Voltage Range | 154-264VAC±3(APP Mode)185-264VAC±3V(UPS Mode) | ||
| Frequency | 50HZ/60HZ(Auto Adaptive) | ||
| Output | |||
| Rated Capacity | 3500W | 5500W | 5500W |
| Output Voltage | 208/220/230/240VAC±5% | ||
| Output Frequency | 50/60HZ±0.1% | ||
| Waveform | Pure Sine Wave | ||
| Transfer Time(adjustable) | Computers(UPS Mode)10ms Appliance(APP Mode)20ms | ||
| Peak Power | 7000VA | 11000VA | 11000VA |
| Peak Efficiency(battery Mode) | >94% | >94% | >94% |
| Battery | |||
| Battery Voltage | 24vdc | 48vdc | 48vdc |
| Constant Charging Voltage(Adjustable) | 28.2vdc | 56.4vdc | 56.4vdc |
| Floating Charging Voltage(Adjustable) | 27vdc | 54vdc | 54vdc |
| Chargers | |||
| PV Charging Mode | MPPT | MPPT | MPPT |
| MAX.PV Input Power | 1500W | 5500W | 5500W |
| MPPT Tracking range | 30-115vdc | 120-430vdc | 120-430vdc |
| MAX.PV Input Voltage | 145vdc | 450vdc | 450vdc |
| MAX.PV Charging Current | 60A | 80A | 80A |
| MAX.AC Charging Current | 60A | 80A | 80A |
| MAX.Charging Current | 120A | 80A | 80A |
| Display | |||
| LCD Display | Display Running Mode /Loads /Ilnput/Output etc | ||
| Interface | |||
| RS232 | 5PIN/Pitch2.0mm Baud rate 2400 | ||
| Communication Port | 2X5PIN/Pitch2.54mm Lithium Battery BMS Communication Card WiFi card Dry Contact | ||
| Parallel Connect Interface | no | no | With Parallel,9unit |
