Solar inverter (ODM LSI 10-20KW)

Product Introduction:

1.Double CPU intelligent control technology, excellent performance
2. Solar priority、Grid power priority mode could be set, application flexible
3.Imported IGBT module driver, inductive load impact resistance is stronger
4.Charge current/battery type could be set, convenient and practical
5.Intelligent fan control, safe and reliable
6.Pure sine wave AC output, and be adapt to all kinds of loads;
7.LCD display equipment parameter in real-time, operation status be clear at a glance
8.Output overload, short circuit protection, Battery over voltage/low voltage protection, over temperature protection(85℃),
AC charge voltage protection,
9. Export wooden case packing, ensure transportation safety

Connection Diagram:

① --- The mains input ground wire    ②---The Mains input zero line
② ---The Mains input Fire Wire         ④--- Output zero line
⑤ ---Fire wire output                          ⑥--- Output Ground
⑦ --- Battery positive input                 ⑧--- Battery negative input
⑨ --- Battery charging delay switch    ⑩--- Battery input switch
⑪ --- The Mains input switch               ⑫--- RS232 communication interface
⑬ ---SNMP communication card

Specification:

Model：		10KW	15KW		20KW
Rated power		10KW	15KW		20KW
Battery	Rated voltage	96VDC/192VDC/240VDC	192VDC/240VDC
	Ac Charge current	20A(Max)
	Low-voltage protection	87VDC/173VDC/216VDC
AC Input	Voltage range	88-132VAC/176-264VAC
	Frequency	45Hz-65Hz
AC Output	Frequency	50/60Hz±1%( Inversion mode)
	Voltage range	110VAC/220VAC；±5%(Inversion mode)
	Output waveform	Pure sine wave
	Switching time	＜4ms( Typical load)
	Efficiency	＞88%（100% resistive load）			＞91%（100% resistive load）
	Overload	Over load 110-120%,last on 60S enable overload protection；Over load 160%,last on 300ms then protection；
	Protection function	Battery overvoltage protection, battery undervoltage protection, overload protection, short circuit protection, overtemperature protection,etc.
Ambient temperature for operation		-20℃~ +50℃
Ambient temperature for storage		-25℃ ~ +50℃
Operation/storage conditions		0-90% (no condensation)
External dimensions: D*W*H（mm）		555*368*695 mm		655*383*795 mm
G.W.(KG)		110		140	170

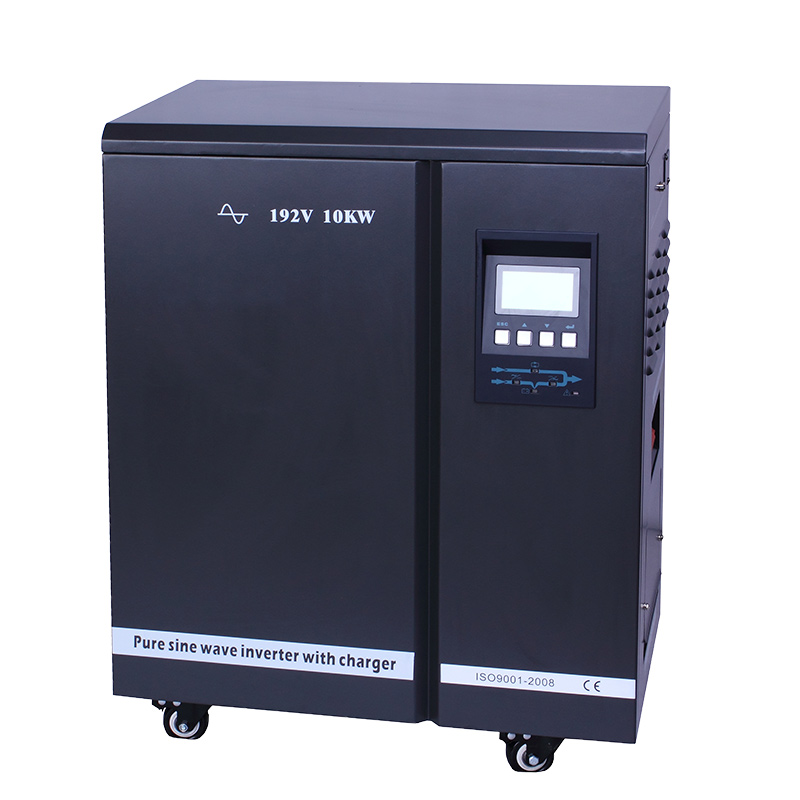

Picture:
