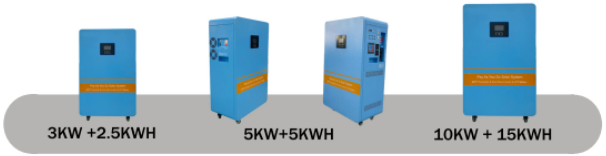

5KW PAY AS YOU GO SOLAR SYSTEM（ODM/PAYG-5KW）

● Pay As You Go

● Large upfront costs broken down into smaller payments

● Digital Display to show remaining days left

● Accept daily/monthly /yearly payment

● Keypad area with 4*4 keypad code input

● Codes are entered into system,it runs for number of days paid for

● Battery,inverter,solar charger and everything integrated

Model	ODM/PAYG-3KW	ODM/PAYG-5KW	ODM/PAYG-10KW
Solar Panel
Mono Solar Panel	300W Solar Pane*2pcs	300W Solar Panel*4pcs	550W Solar Panel *4pcs
Pay As You Go
Keypad area	4*4 Keypad,Code input,LED display shows remaining days
LifePo4 battery
Battery Energy	25.6V 100Ah(2.56KWH)	51.2V 100Ah(5.12KWH)	51.2V 200Ah(10.24KWH)
Charging cut-off Voltage	28.8V士0.2V	57.6V±0.2V	57.6V±0.2V
Discharge cut-off Voltage	22.4v士0.2V	44.8V±0.2V	44.8V±0.2V
Inverter Output
Rated Output Power	3000W	5000w	1000ow
Output Voltage	208/220/230/240VAC±5%
Wave form	Pure Sine Wave
Transfer Time(adjustable)	Computers(UPS Mode)10ms Appliance(APP Mode)20ms
Peak Power	6000VA	10000VA	2000OVA
PV Charge
PV Charging Mode	MPPT
MPPT Tracking range	40-450vdc	120-430vdc	90-500vdc
MAX.PV Input Voltage	500vdc	450vdc	500vdc
MAX.PV Charging Current	100A	80A	150A
AC Charge
MAX.AC Charging Current	100A	80A	150A
MAX Charging Current	100A	80A	150A
Rated Input Voltage	220/230Vac
General
LCD Display	Display Running Mode/Loads/Input/Output etc
RS232	5PIN/Pitch2.0mm Baud rate 2400
Communication Port	2X5PIN/Pitch2.54mm Lithium Battery BMS Communication Card WiFi card Dry Contact
DC output	12V*2Pcs
USB output	5V*2Pcs
AC output	220V*2Pcs
