Pay as you go solar system
500W PAY AS YOU GO SOLAR SYSTEM（ODM/PAYG-500W）
● Pay As You Go Daily/Monthly/Yearly
● Large upfront costs broken down
into smaller payments
● Keypad Area 4x4 Keypad,Code Input
● Remaining days Digital Display
● AC220V or 110V output
● DC12V&USB5V output

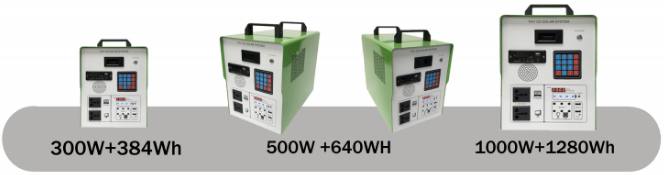

| Model | ODM/PAYG-300W | ODM/PAYG-500W | ODM/PAYG-1000W |
| Solar Panel | |||
| Solar panel with cable wire | 80W/18V | 100W/18V | 200W/18V |
| Main Power Box | |||
| Built in inverter | 300W pure sine wave | 500W pure sine wave | 1000W pure sine wave |
| Built in controller | 7A/12V PWM | 10A 12V PWM | 15A 12V PWM |
| Built in battery | 12.8V/30AH(384WH) | 12.8V/50AH(640WH) | 12.8V/100AH(1280WH) |
| Keypad area | 4*4 Keypad,Code input | ||
| LED display | AC 220V display &battery DC display &remaining days display | ||
| Radio/MP3/Bluetooth | Yes | ||
| AC output | AC220V/110V*2pcs | ||
| DC output | DC12V*6pcs USB5V*2pcs | ||
| Accessories | |||
| LED bulb with cable wire | 2pcs*3W LED bulb with 5m cable wires | ||
| 1 to 4 USB charger cable | 1 piece | ||
| *Optional accessories | AC wallcharger,fan,TV,tube | ||
| Features | |||
| System protection | Low voltage,overload,load short circuit protection | ||
| Charging mode | Solar panel charging/AC charging(optional) | ||
| Charging time | Around 5-6 hoursby solar panel | ||
| Package | |||
| Solar panel size/weight | 1030*665*30mm/8kg | 1150*674*30mm/9kg | 1580*808*35mm/13.3kg |
| Main power box size/weight | 460*300*440mm/18kg | 460*300*440mm/19kg | 550*300*455cm/23kg |
| Energy Supply Reference Sheet | |||
| Appliance | Working time/hrs | ||
| LED bulbs(3W)*2pcs | 63 | 106 | 213 |
| Fan(10W)*1pcs | 38 | 64 | 128 |
| TV(20W)*1pcs | 19 | 32 | 64 |
| Laptop(65W)*1pcs | 6 | 9 | 19 |
| Mobile phone charging | 19pcs phone charging full | 32pcs phone charging full | 64pcs phone charging full |
