Pay as you go solar system
80W PAY AS YOU GO SOLAR SYSTEM（ODM/PAYG-80W）
● Pay As You Go Daily/Monthly/Yearly
● Large upfront costs broken down
into smaller payments
● Keypad Area 4x4Keypad,Code Input
● Remaining days Digital Display
● Output Ports Number of USB 5V(2Pcs)
● Output Ports Number of DC 12V(6Pcs)

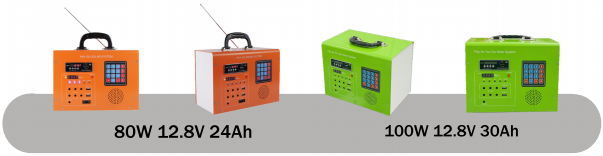

| Model | ODM/PAYG-002 | |
| ODM/PAYG-80W | ODM/PAYG-100W | |
| Solar Panel | ||
| Solar panel with cable wire | 80W/18V | 100W/18V |
| Main Power BoX | ||
| Built in controller | 7A/12V PWM | |
| Built in battery | 12.8V/24AH(307.2WH) | 12.8V/30AH(384WH) |
| Keypad area | 4*4 Keypad,Code input | |
| LED display | AC 220V display &battery DC display &remaining days display | |
| Radio/MP3/Bluetooth | Yes | |
| DC output | DC12V*6pcs USB5V*2pcs | |
| Accessories | ||
| LED bulb with cable wire | 2pcs*3W LED bulb with 5m cable wires | |
| 1 to 4 USB charger cable | 1 piece | |
| *Optional accessories | AC wall charger,fan,TV,tube | |
| Features | ||
| System protection | Low voltage,overload ,load short circuit protection | |
| Charging mode | Solar panel charging/AC charging(optional) | |
| Charging time | Around 5-6 hours by solar panel | |
| Package | ||
| Solar panel size/weight | 830*660*25mm/6kg | 1005*665*30cm/7.5kg |
| Main power box size/weight | 300*180*340mm/6kg | 350*260*340mm/7kg |
| Energy Supply Reference Sheet | ||
| Appliance | Working time/hrs | |
| LED bulbs(3W)*2pcs | 51 | 64 |
| DC fan(10W)*1pcs | 30 | 38 |
| DC TV(20W)*1pcs | 15 | 19 |
| Mobile phone charging | 15pcs phone charging full | 19pcs phone charging full |
