50W PAY AS YOU GO SOLAR SYSTEM（ODM/PAYG-50W）

● Pay As You Go Daily/Monthly/Yearly
● Large upfront costs broken down
into smaller payments
● Keypad Area 4x4 Keypad,Code Input
● Remaining days Digital Display
● Output Ports Number of USB 5V(2Pcs)
● Output Ports Number of DC 12V(6Pcs)

Model	ODM/PAYG-001

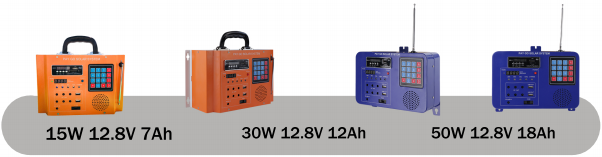

	ODM/PAYG-15W	ODM/PAYG-30W	ODM/PAYG-50W
Solar Panel
Solar panel with cable wire	15W/18V	30W/18V	50W/18V
Main Power Box
Built in controller	7A/12V PWM
Built in battery	12.8V/6AH(76.8WH)	12.8V/12AH(153.6WH)	12.8V/18AH(230.4WH)
Keypad area	4*4Keypad,Code input
LED display	AC 220V display &battery DC display &remaining days display
Radio/MP3/Bluetooth	Yes
DC output	DC12V6pcs USB5V2pcs
Accessories
LED bulb with cable wire	2pcs*3W LED bulb with 5m cable wires
1 to 4 USB charger cable	1 piece
*Optional accessories	AC wall charger,fan,TV,tube
Featurs
System protection	Low voltage,overload ,load short circuit protection
Charging mode	Solar panel charging/AC charging(optional)
Charging time	Around 5-6 hours by solar panel
Package
Solar panel size/weight	35035017mm/1.9kg	33561017mm/3kg	52567025cm/5kg
Main power box size/weight	300180340mm/3kg	300180340mm/3.2kg	300180340mm/3.5kg
Energy Supply Reference Sheet
Appliance	Working time/hrs
LED bulbs(3W)*2pcs	13	25	38
DC fan(10W)*1pcs	7	15	23
DC TV(20W)*1pcs	3	7	11
Mobile phone charging	4pcs phone charging full	7pcs phone charging full	11pcs phone charging full
