Solar home system
5KW AIl-in-One Solar Home System（ODM/SHS-5KW-1）
● LCD screen with real-time data
● Reliable performance,simple operation
● Battery,inverter,solar charger and everything integrated
● AC output,DC output & USB output
● PV charging / AC charging
● Plug-and-play with modular design

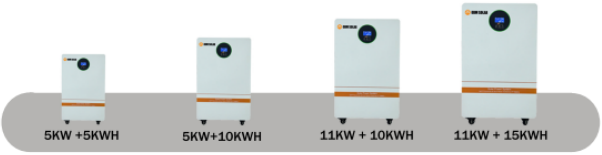

| Model | ODM/SHS-5KW-1 | ODM/SHS-5KW-2 | ODM/SHS-11KW-1 | ODM/SHS-11KW-2 |
| Solar Panel | ||||
| Mono Solar Panel | 250W Solar Panel*4pcs | 550W Solar Panel*4pcs | 550W Solar Panel*4pcs | 550W Solar Panel*6pcs |
| LifePo4 battery | ||||
| Battery Energy | 51.2V 100Ah(5.12KWH) | 51.2V 200Ah(10.24KWH) | 51.2V 200Ah(10.24KWH) | 51.2V 300Ah(15.36KWH) |
| Charging cut-off Voltage | 57.6V±0.2V | 57.6V±0.2V | 57.6V±0.2V | 57.6V±0.2V |
| Discharge cut-off Voltage | 44.8V±0.2V | 44.8V±0.2V | 44.8V±0.2V | 44.8V±0.2V |
| Inverter Output | ||||
| Rated Output Power | 5000W | 11000W | ||
| Output Voltage | 208/220/230/240VAC±5% | |||
| Wave form | Pure Sine Wave | |||
| Transfer Time(adjustable) | Computers(UPS Mode)10ms Appliance(APP Mode)20ms | |||
| Peak Power | 10000VA | 20000VA | ||
| PV Charge | ||||
| PV Charging Mode | MPPT | |||
| MPPT Tracking range | 120-430vdc | 90-500vdc | ||
| MAX.PV Input Voltage | 450vdc | 500vdc | ||
| MAX.PV Charging Current | 80A | 150A | ||
| AC Charge | ||||
| MAX.AC Charging Current | 80A | 150A | ||
| MAX Charging Current | 80A | 150A | ||
| Rated Input Voltage | 220/230Vac | |||
| General | ||||
| LCD Display | Display Running Mode / Loads / Input / Output etc | |||
| RS232 | 5PIN / Pitch2.0mm Baud rate 2400 | |||
| Communication Port | 2X5PIN/Pitch2.54mm Lithium Battery BMS Communication Card WiFi card Dry Contact | |||
| DC output | 12V*2Pcs | |||
| USB output | 5V*2Pcs | |||
| AC output | 220V*2Pcs | |||
