Solar home system

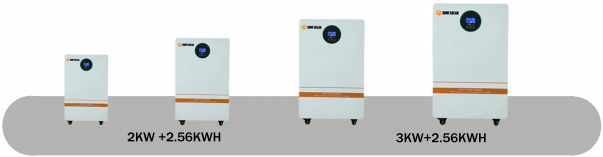

3KW AIl-in-One Solar Home System
● LCD screen with real-time data
● Reliable performance,simple operation
● Battery,inverter,solar charger and
everything integrated
● AC output,DC output & USB output
● PV charging / AC charging
● Plug-and-play with modular design
| Model | 2KW+2.56KWH | 3KW+2.56KWH |
| Solar Panel | ||
| Mono Solar Pane | 250W Solar Panel*2pcs | 250W Solar Panel*2pcs |
| LifePo4 battery | ||
| Battery Energy(2.56KWH) | 25.6V 100Ah | 25.6V 100Ah |
| Charging cut-off Voltage | 28.8V±0.2V | 28.8V±0.2V |
| Discharge cut-off Voltage | 22.4V±0.2V | 22.4V±0.2V |
| Inverter Output | ||
| Rated Output Power | 2000W | 3000W |
| Output Voltage | 208/220/230/240VAC±5% | |
| Wave form | Pure Sine Wave | |
| Transfer Time(adjustable) | Computers(UPS Mode)10ms Appliance(APP Mode)20ms | |
| Peak Power | 4000VA | 6000VA |
| PV Charge | ||
| PV Charging Mode | MPPT | |
| MPPT Tracking range | 40-450vdc | 40-450vdc |
| MAX.PV Input Voltage | 500vdc | 500vdc |
| MAX.PV Charging Current | 100A | 100A |
| AC Charge | ||
| MAX.AC Charging Current | 100A | 100A |
| MAX Charging Current | 100A | 100A |
| Rated Input Voltage | 220/230Vac | |
| General | ||
| LCD Display | Display Running Mode/Loads/Input/Output etc | |
| RS232 | 5PIN/Pitch2.0mm Baud rate 2400 | |
| Communication Port | 2X5PIN/Pitch2.54mm Lithium Battery BMS Communication Card WiFi card Dry Contact | |
| DC output | 12V*2Pcs | |
| USB output | 5V*2Pcs | |
| AC output | 220V*2Pcs | |
