Product Introduction:
1.Solar generator no need fuel such as oil, gas, coal and etc, it absorbs sunlight and generate power directly, free of charge, can improve the life quality for non-electricity area.
2.Using high efficient solar panel, tempered glass frame, fashionable and beautiful, solid and practical, easy to carry and transport.
3.Solar generator has built-in solar charger and power display function, so you can know the status of charge and discharge progress, ensure enough electric for using.
4.Simple input and output equipment do not need install and debugging, integrated design makes convenient operation.
5.Built-in battery, protect of overcharge, over discharge, overload and short circuit.
6.All in one AC220 and DC12V, USB5V output, can be used to household appliances.
7.Solar generator is silence, cute, shockproof, dust proof, green energy and environmental, widely used to farm, ranch ,border defense , posts, fish farming, and other border areas without electricity.

Connection Diagram:

300W and 500W




1000W

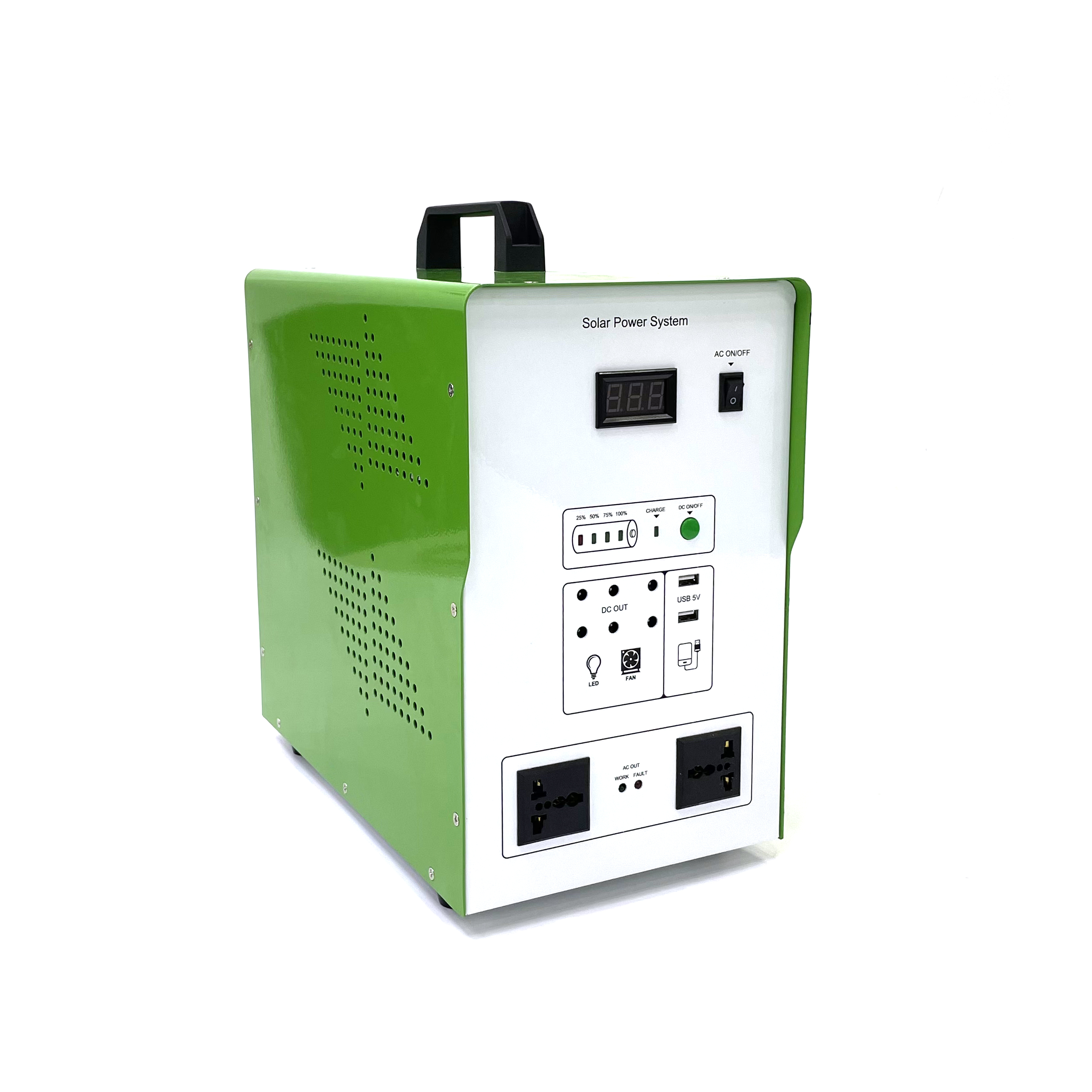

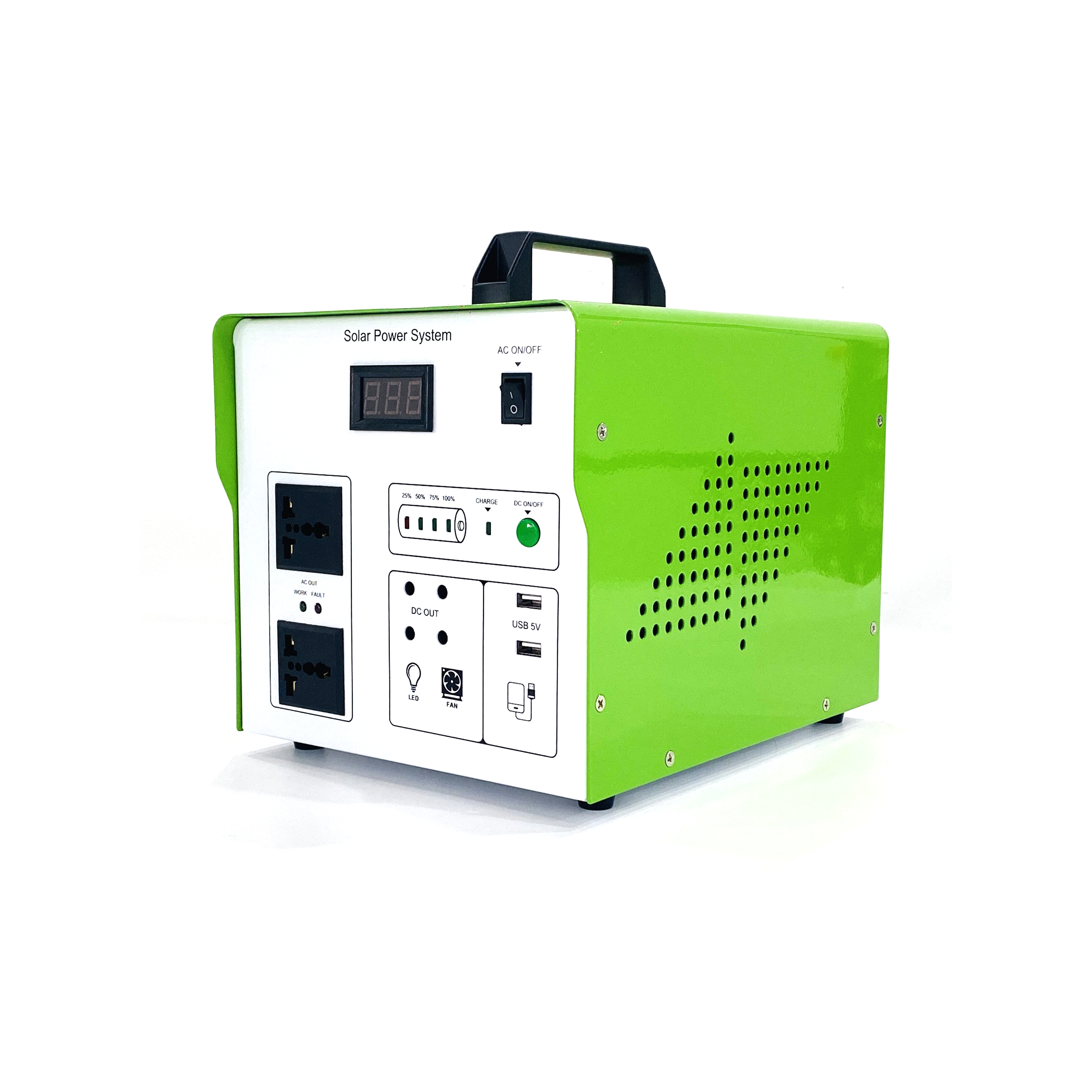

3. Switch & Instruction for Port

1. DC Switch: Turn on the switch, it can show DC voltage in the front digital display, and output DC12V and USB DC 5V;  Noted: this DC switch is for DC output only.
2. USB Output: 2A/5V, for mobile devices charging.
3. Charging LED display: this LED indicator shows solar panel charging, it’s on, means it’s charging from solar panel.
4. Digital Display: show battery voltage, you can know the battery voltage percentage, loop display.
5. AC switch: To power on/off AC output. Please turn off the AC switch when you do not use it, to decrease its power consumption.
6. Battery LED Indicators: Shows Battery electricity percent of 25%, 50%, 75%,100%.
7. Solar Input Port: Plug solar panel cable connector to Solar Input Port, The Charging LED will be” ON” when connected correct, it will be off at night or not charging from solar panel. Noted: Do not be short circuit or reverse connection.
8. Battery Breaker: this is for working safety of internal system equipment, please switch on when using the equipment, otherwise the system can not work.

4.Technical Data

Model	300W	500W	1000W
Solar Panel	60W/18V	100W/18V	150W/18V
Built-In Battery	12V/300wh	12V/500wh	12V/1000wh
Built-In Inverter	Modified Sine Wave 300W	Modified Sine Wave 500W	Modified Sine Wave 1000W
The output Voltage	AC220V, 50Hz
	DC/12V DC/5V
Led Bulb	2x3W Bulb with 5m cable	2x3W Bulb with 5m cable	2x3W Bulb with 5m cable
Charge cable wire	1~4 charge cable wire

Picture:
